Loader Parts in Spokane - Loaders are heavy equipment that is used in many industries. This industrial machine is utilized for moving items and loading materials including snow, feed, woodchips, grain, dirt, demolition debris, asphalt, raw materials, sand and similar items. These machines facilitate a variety of transportation such as moving items into feed-hoppers, rail cars, conveyor belts and dump trucks. There are a variety of different loaders designed for numerous applications including scoop, skid-steer, front loader, shovel, payloader, front-end loader, skip loader, wheel-loader, and bucket loader.
Description
Loaders are a specific type of tractor outfitted with wheels or tracks with a wide, front-mounted bucket that is connected to the end of two booms or arms. Loaders can pick up items including dirt, sand or gravel and move it to a different location on the job site without having to push it along the ground. Loaders transport stockpiled materials from the ground and deposit them into an open trench or dump truck. The loader assembly may consist of a permanently mounted or removable attachment options. The bucket can be interchanged with other tools. Forks can be mounted to lift shipping containers or pallets. A hydraulically operated clamshell bucket can be attached for light dozer and scraper applications. Large bales of hay or straw can be transported via a loader with a bale grappler attachment.
A front bucket is typically part of large loaders and they are commonly called front loaders. JCBs, backhoe loaders and loader backhoes are the name given to tinier loader tractors that use a small backhoe. These loader models are commonly used for loading trucks, digging, clearing debris and laying pipe. The loader is not as efficient as an excavator or backhoe as it is unable to dig lower than its’ wheel level. The capacity of loader buckets ranges from 0.5 to 36 cubic meters. Front loader bucket capacity is greater in comparison to a backhoe loader.
The majority of loaders feature wheels and not tracks; however, track models are common. Track models are popular in construction sites and areas where rubber wheels may be prone to damage from sharp items. Wheels offer better speed and mobility and do not damage paved roads the way tracks do, but tracks offer more traction. Loaders are used to transport items and digging tools around construction site locations.
It is common to see front loaders removing snow from sidewalks, parking lots and other narrow locations that cannot handle heavy equipment. Front loaders are commonly used as snowplows once the right attachment is secured or they can use a bucket or snow-basket to transport snow into a dump truck or snow plow bin.
There are special high-tip buckets available for lightweight materials including peat, woodchips and light gravel, making it easier to empty the bucket while lifted at full height. These machines have enjoyed greater popularity over the past twenty years in urban engineering applications and earthmoving works. There are many loader sizes available to facilitate many duties.
Sizeable loaders do not have the same automotive steering features unlike regular tractors with a backhoe or front bucket. These loaders steer by way of a hydraulically actuated pivot point that is situated between the rear and front axles, known as articulated steering. This specialized design allows most of the weight to be carried by the machine due to the solid front axle. Articulated steering offers more maneuverability. The attachment and the front wheels rotate along the same axis, helping the operator steer the load in an arc once the machine is positioned. Once the machine is twisted to the side with a heavy load raised, there is a greater risk of turning over towards the wide side.

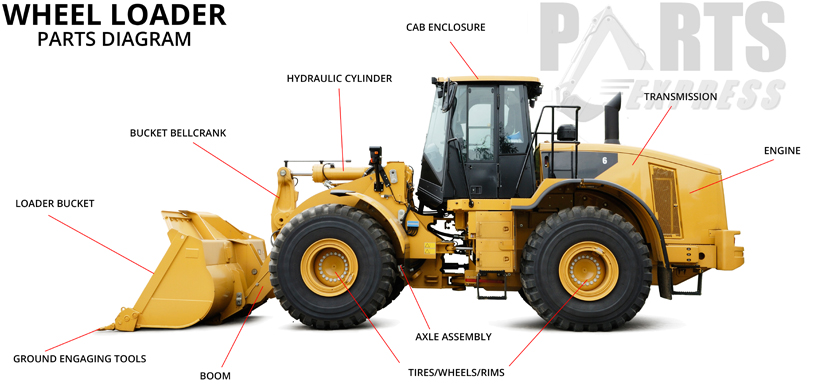

Some of the key components include hydraulic items such as pumps, motors and valves; transmission items including the gearbox, axles, pumps, motors, wheels or tracks etc., and the engine that is mostly diesel.
The engine is responsible for controlling the hydraulics and the transmission which enables the front attachments such as the bucket, forks, sweeper etc. to move. This equipment is utilized to handle sand, gravel, manure and similar items within model-specific lifting specifications.
Wheel Loaders
The first model featured a rear-wheel drive and was based on a tractor. Today’s wheel loader models consist of articulated rear and front wheels featuring the same dimensions.
Armored Wheel Loaders
Various military applications rely on armored Caterpillar 966 wheel loaders to conduct combat engineering and construction missions. This equipment is commonly used for building fortification, constructing bases and disassembling roadblocks. Armor plating is added to protect the machine against gunfire, Molotov cocktails, stones and rocks. Certain elite police squads have relied on wheel loaders for military use to open routes and lead the way for police. Wheel loaders that utilize remote controls can be used by military and police departments.
Tractor Front Loaders
Tractor models that run with 50 to 200 horsepower can utilize a loader feature. These tractor loaders were created to achieve a variety of farming tasks. They are highly versatile and lower in cost in comparison to Telehandler equipment. Tractor loaders can utilize a variety of attachments such as hydraulic grabs and spikes to facilitate bale handling and silage applications. Fork attachments are ideal for pallet applications and buckets are used frequently for agricultural jobs.
Compact Front End Loaders
FELs or front-end loaders are popular additions to farm tractors and compact utility tractors or CUTs. Smaller, compact models range in horsepower from 18 to 50, an ideal amount of power for groundskeeping and landscaping jobs. The traditional dogleg design, curved arm and semi-curved options keep front-end loaders flexible to complete a variety of jobs.
Compact utility tractors with front-end loaders are capable of doing a variety of jobs and come with numerous attachments. To facilitate better digging capacity, a tooth bar may be added to the front edge of the machine. A quick coupler or quick attach system or QA enables attachments such as bale spears, pallet forks and buckets to be added or removed with ease.
The load-haul-dump or LHD machine consists of a front end loader that is beneficial in mining applications. It uses a variety of buckets and can operate either with electric motors or diesel engines.
Skid Loaders
A small engine powered loader that has a rigid frame is called a skidsteer, skid loader or skid-steer loader. This unit features lift arms enabling it to easily attach to numerous tools. These units consist of a 4-wheeled vehicle that mechanically synchronizes on either side. The left side drive wheels are capable of being driven independently from the right side. The wheels typically maintain a fixed, straight alignment on the body without a separate steering option.
Turing maneuvers are completed by differential steering. The right and left wheel pairs operate at different speeds, causing the machine to turn by dragging or skidding fixed-orientation wheels along the ground. The rigid frame and strong wheels stop torsional forces from happening due to the dragging motion. It is easy for soft ground and fragile road surfaces to become destroyed by the immense ground friction caused by tracked vehicles and skid steers.
There are specifically designed wheels that convert low ground friction. Certain skid-steer models can accomplish pirouette turning and are capable of zero-radius turns to allow maximum maneuverability. This is valuable for applications needing an agile and compact loader. Some models use tracks in place of wheels and are called multi-terrain loaders.
The lift arms in skid loaders are situated alongside the operator with pivot points located behind the driver’s shoulders. Being so close to moving boom caused operator safety concerns with the first models compared to conventional front loader models, particularly during entry and exit of the machine. Thankfully, today’s machines offer more safety features and totally enclosed cabs to maintain safety. Comparable to other front loader models, these machines can carry items by pushing them across the ground or carrying materials in the bucket for easy truck or trailer depositing.
History of Tracked Loaders
A tracked loader features a chassis with a loader for loading and digging material. There have been three main design evolutions for this machine, each one improving versatility and efficiency. This equipment is capable of numerous tasks, making it a popular addition to fleets.
Tracked loaders were born from track tractors initially, although, they were more like bulldozers of that era due to their ability to dig and access harder ground services. Tracked loaders were commonly utilized for transporting stockpiled items into loading trucks and rail cars.
Hydraulic integration changed everything from increasing overall power to providing power to the loader linkages. The ability of the machine to offer bucket down pressure has been enabled thanks to the introduction of the hydraulic system, facilitating greater digging within compact locations. Initially, engine weight was situated on the front portion of the tracks together with other heavy loader equipment. This caused tons of heavy wear issues on the undercarriage and front idler wheels. The hydrostatic drive system became the second major design innovation to improve tracked loaders.
Swingloaders
A swingloader is a popular piece of equipment that uses a rigid frame and a swinging boom. The boom is capable of travelling 180 degrees or more. The boom can travel up to 180 degrees or farther, depending on the model. This equipment is used mostly in railway applications for laying rail. Numerous attachments including forks, buckets and magnets can be implemented. Smaller machines are used for agricultural applications. Swingloaders are useful in limited space applications. This loader is able to deposit and lift on all sides.
